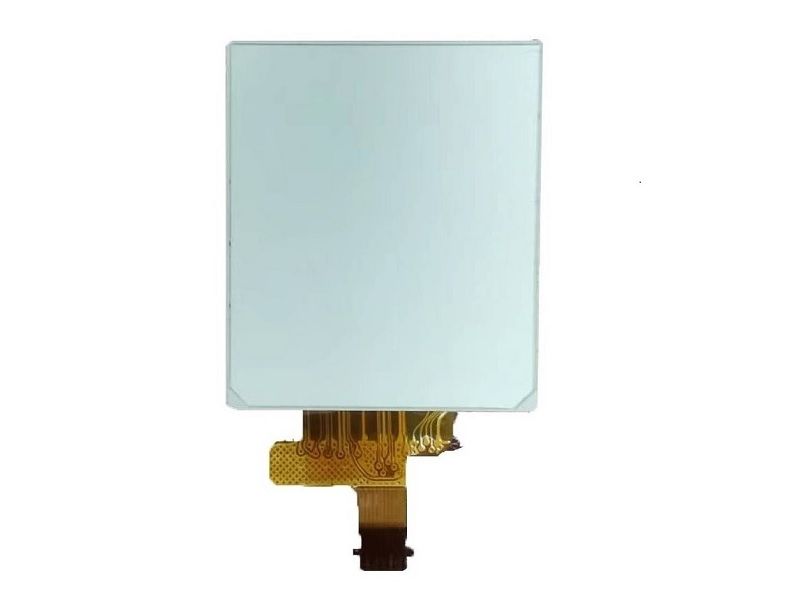

RL013P2115-12A

Pin No.

Symbol

I/O

Description

Note

1

SDA

I/O

serial data input/output

2

SCL

I

serial clock

3

RS

I/O

data/ command selection

4

RESET

I

-This signal will reset the device and it must be applied to properly initialize the chip.

 -Signal is active low

5

CS

I

Chip Selection Pin

-Low Enable.

6

GND

P

Power ground pin.

7

NC

-

Not connect

8

VDD

P

Power2.8V Supply for Analog, Digital System and Booster Circuit.

9

VLED-

P

Backlight LED Cathode

10

VLED+

P

Backlight LED Anode

11

GND

P

Power ground pin.
