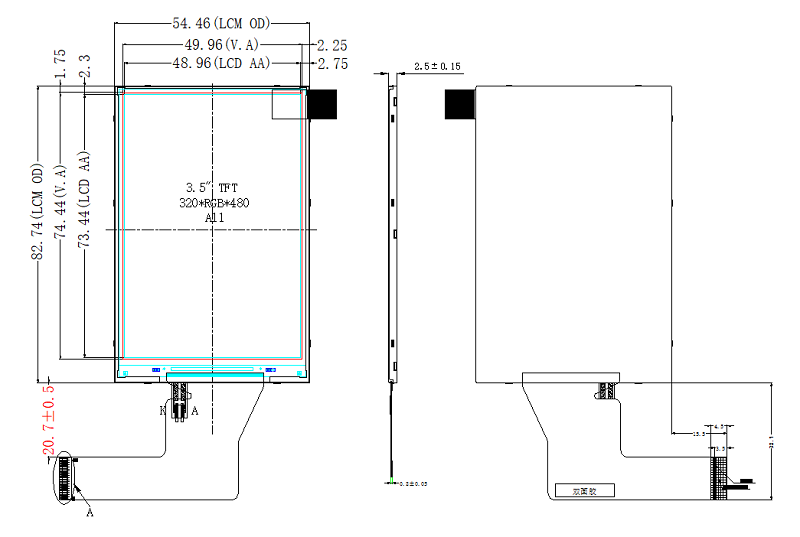

RL035P3125-16A

Pin No.

Symbol

I/O

Description

1

GND

P

Power ground

2

VCI

P

Analog power supply

3

IOVCC

P

Digital IO Pad power supply

4

/CS

I

Chip select pin. Active: low

5

RS

I

Selects the register. Low : Index / status; High : Control

6

/WR

I

Write enable clock input pin

7

/RD

I

Read enable clock input pin

8

/RESET

I

Reset pin. Initializes the LCM when low.

9~24

DB0~DB15

I

DB[0:15] are used as MCU parallel interface data bus

If not used, please fix this pin at VDDI or DGND

25

IM0

I

The MCU interface mode select.

26

LED_K

P

Backlight cathode

27

LED_A

P

Backlight anode

28

TE

O

Tearing effect output. If not used, please open this pin.

29~33

NC

-

Not connect

34~39

GND

P

Power ground
